TPE+ non texta Fabric composita Co-extrusio-waterstop Production Line

TPE+ non texta Fabric composita Co-extrusio-waterstop Production Line

Apparatus List

1. SJ-55/30 extruder-unum stupra (I unitas)

2. superioris et inferioris unwinding cogitationes (II unitates)

3. Die ac tentorium mutante (1 set)

4. 500mm L three-roll calendarium (1 unitas)

5. Rollerus temperatus ratio (I unitas)

6. Refrigerationem bracket et tondet systema (1 set)

7. Haut-off (I unitas)

8. Winder (1 unit)

9 Complete electrica imperium ratio (I set)

Apparatus ostentus (pars)

Screw, Ferocactus, et Temperature Imperium

Cochlea Material: 38CrMoAL, Nitrided Steel

Screw duritia: HV950

Ferocactus Material: Gere repugnans Ferocactus Material, Nitrided Steel

Ferocactus duritia: HV1050

Screw Diameter: 55mm

L/D Ratio: 30/1

Main Motor Power: 15kW

Motor principalis calefactio potentiae: 12kW

Ferocactus Calefaciens: Mittite Aluminium vel Ceramic

Temperature Control: Automatic, Fan-forced Cooling

Calendarium

Diameter cylindrus: 300mm

width cylindrus efficax: 400mm

Materia Roller: 45 chalybe

Rollerus structuram: Qingdao Rollerus Vestibulum vel Xuzhou Saite Machinery specialis multi-alvei consilium

Coaxiality: ≤0.005mm

Superficies cylindrus finis: Ra ≤0.016µm

Superficies cylindrus durities: HRC58-62

Chromium plating crassitudine: 0.08mm

Coegi reductionem gearbox: Redson vel Congli

Coegi potestatem: 3 x 1.5kW

Celeritas imperium: Invt invertere

Three-cylindro gap commensurationem: cylindricum temperatio, salus subitis stop switch, synchronum systematis imperium

Configuratione cylindro tribus: 45 ° benificium

Three-cylindrus wall panel: Integral chalybe welding

Three-cylindro globosa cylindro gestus: Harbin ferens vel Wafangdian afferens

Swivel iuncturam: Sino-aliena iuncturam audere

Tractor

Specificationes: Ø160 x 400mm

Materia: Nitrile Flexilis scutulis

Coegi: reducer

Potentia: 1 x 1.1kW

Imperium: INVT variabilis frequentia coegi

Modus clamping: Pneumatica

Synchronised cum tribus scutulis vel independenter

Winder

Drive Torque

Typus: Dual-statio

Imperium: Lorem certum longitudinem numerationem

Rewinding diameter: 50mm

Paper tube core specification: 2-inch exterior jacket

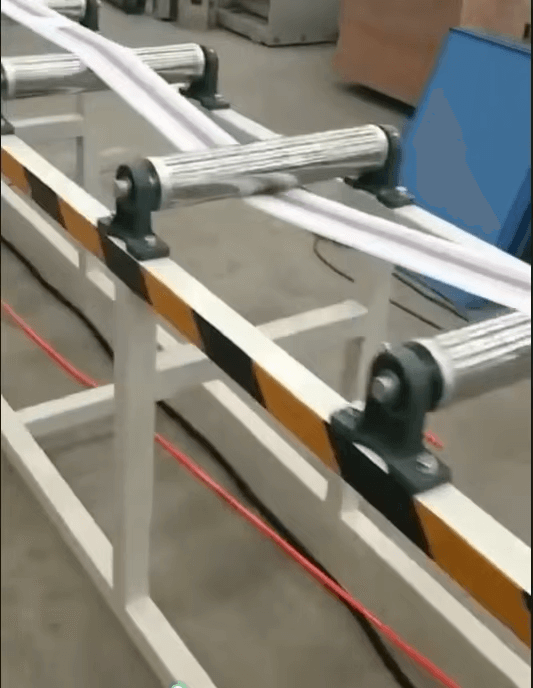

Operis ostentationem
